PWM and AD-Ports
PWM and AD-Ports

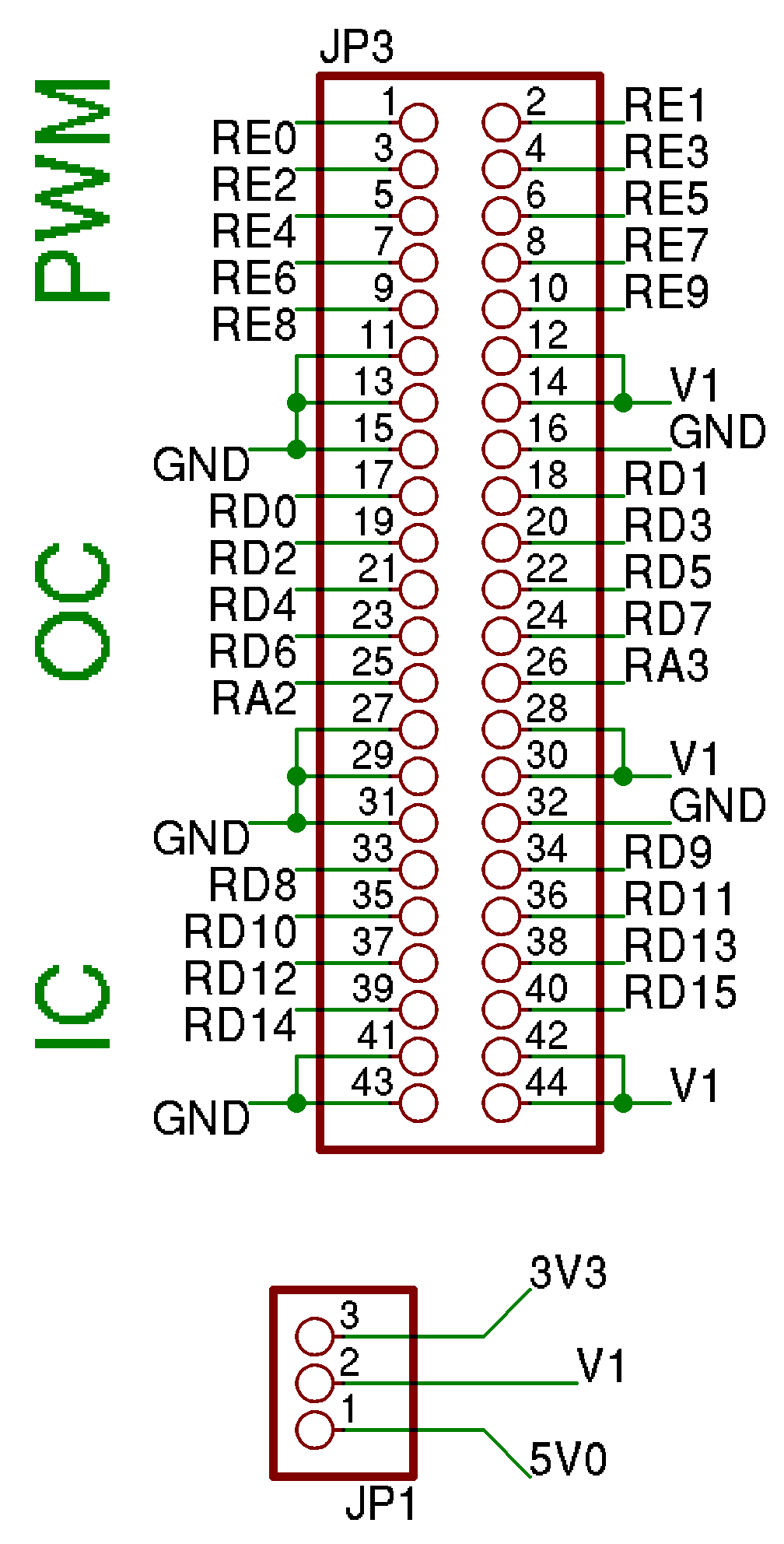

These port are made for multipurpose use and special use for planned projects. The trick is that on these ports power supply is switchable either supplied by escher or the the addon can supply escher. Therefore for each of the ports there is a jumper, which can select a 3V or 5V supply for V1, V2 on the ports.
These ports can be used with different sizes of ribbon cable with connectors for easy wiring. If 26-Pin ribbon connectors are used, PIN 27,28 can be cut out so it fits. Also for 10-Pin connectors of the pins can be cut so they fit. Generally 40-PIN ribbon cables (easy accessible IDE-cables) will use all of them.
