The ISCP connector

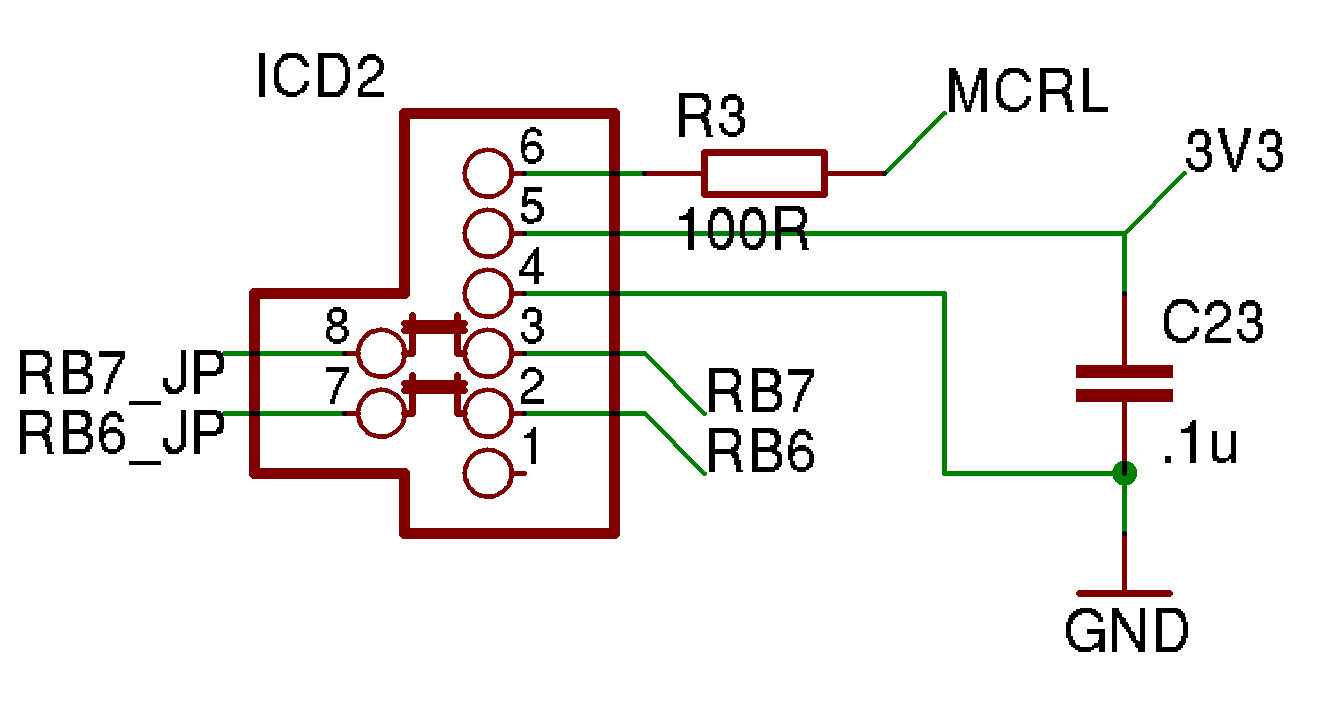

**Figure 4:** ICD connector

On the ISCP-Connector a Debugger or Programmer can be attached for in-circuit programming or debugging the dsPIC.

The pin assignment is made so it is compatible with the PICStart+²and compatible Kits³.

Programming could also be done over a boot-loader (see software description).

Table 1: Pinout ICSP (PGD and PGC must not be jumpered)
